Modelling of large diesel engines

Introduction to the modelling of large diesel engines

Large diesel engine modeling, which is our plant's core needs in such areas as focused industry, engineering machinery, ships, power generation, based on the overall structure, core components, working principles, assembly logic of the actual large diesel engine (ship, engineering, power generation), micro-scaling at a precise rate, with customized production services for “structure accuracy, component simulation, functional suitability”。The core is “precision of engine detail, presentation of work mechanics, enabling diversity of scenes”, distinct from the small engine model and the general industry model, where we perform “large exclusive, extremely detailed, dynamic and optional” features, refine core components such as aquariums, rotors, pistons, cam axes, turbine boosters, fuel supply systems, clearly present a four-strength process of engine infusion, compression, operation, exhausting, and provide integrated customized solutions from demand communication, graphic matching, precision production, trial optimization to after-sale maintenance for motor production enterprises, engineering mechanics, shipyards, professional colleges, scientific research institutes, industry fairs, etc., to enable customers to perform product displaying, teaching and learning, scientific exercises, promotion, etc.。
As a professional modeler, our large diesel engine modeling has three main core advantages and is well suited to the needs of all types of large diesel engines: One is the reduction of structural components to precision, with a professional team with a mastery of large diesel engine structures and assembly processes, with precision to recapturing of large diesel engines of different models, different applications, reduction of tank layouts, size of components, interface details, marking specifications, etc., to fit the scale (common 1:10, 1:20, 1:50, adjustable as required) and reduction to more than 95 per cent, taking into account professionalism and presentation;Second is the clear presentation of the working principles, which, through a rational layout of the parts, a description of the workflow, clearly present the working mechanisms of the four-string diesel engines, which can be embedded in the dynamic demonstration module (simulate piston movement, curve rotation), as required, to visualize and visualize the working principles of the abstract engines.;The third is the flexibility to adapt model sizes, detail precisions, functional models to client needs, different scenarios such as the suitable enterprise exhibition hall, workshop display, classroom teaching, exhibition displays, etc., with the addition of exclusive elements such as engine parameters, name of components, enterprise LOGO, model identification, and precision presentation of customer core needs and demonstration of client expertise。

Our production guidelines are “structure-precision, component simulation, clarity, solid durability”, rejecting generic homogenization models, each of which is customized, strictly following the standards and assembly norms of the large diesel engine industry, turning large, heavy, structurally complex real engines into picturing, tactile and demonstration display vehicles, helping efficient customers to transmit product advantages, spread expertise, and improve quality perceptions.

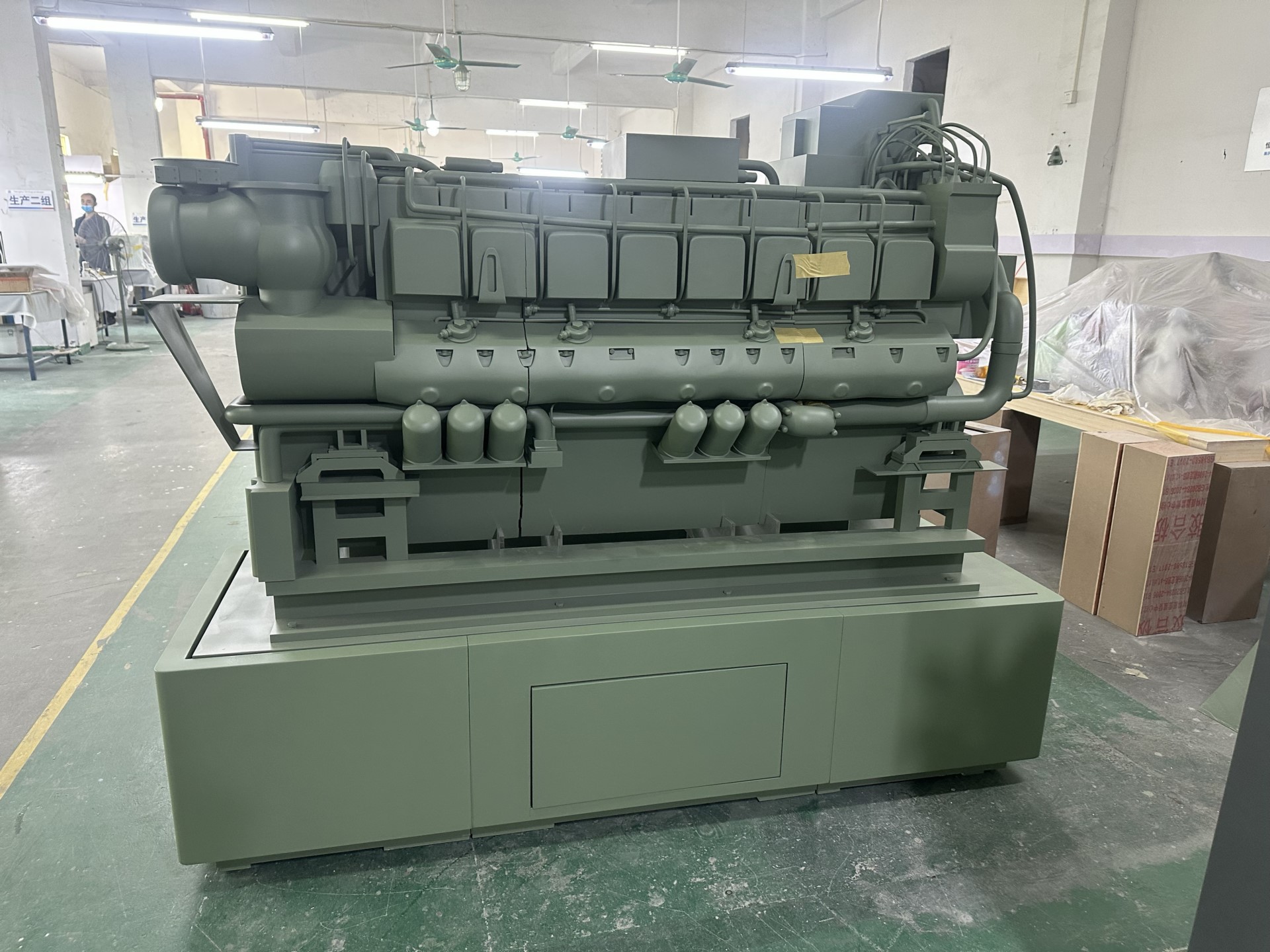

Photos of Twitter 20251218160907 773 33 - 1K JPEG.jpg

II. Questions and answers relating to the modelling of large diesel engines

Question one: Can your plant accurately reduce large diesel engines and core components of different models and applications? How do we ensure that models match actual engines with both professional, analogue and demonstration?

Answer: It's perfectly accurate to reduce, professional, imitation and demonstration are the core competitiveness of our model, and the whole process is achieved through triple professional control.。The first is full coverage of the model, precise restitution of all types of aircraft, such as large diesel engines, engineering machinery engines and diesel engines for power generation, complete recharging of the casks, warp axes, pistons, turbine boosters, fuel systems, cooling systems, precise retrofitting of the structure of the components, assembly relationships, size scales and marking details, acquisition of engine drawings, parameters of components, field view photographs prior to production, ensuring that each particulars fit the actual engine model with the standard assembly.;The second is the precision control of professional detail, where our design team has read in depth the assembly process and working principles of the large diesel engines, which strictly follow the logical configuration of the components in actual assembly, restore the precision of the components, indicate the names of the core components, technical parameters, and ensure that the model meets industry professional standards and clearly presents the structural advantages and working machinery of the engines.;Third, dual calibration optimization, with a focus on imitation of controlled components, assembly precision, detailing clarity, double calibration of finished products against engine drawings, industry standards, ensuring that models are both high-quality performance and fit the structure and assembly specifications of the actual large diesel engines, which are professional, simulation and visual and can be used directly for demonstration, teaching and scientific purposes。

Question two: Can a dynamic demonstration of engine work be achieved by customizing the large diesel engine model? Is it easy to operate at a later stage if parts, additional parameters or maintenance are to be adjusted? Are transport installations guaranteed?

Answer: The client's concern to “show intuitive, adjust troubles, transport damage” can be fully addressed through the achievement of work dynamics demonstration, later adjustment of maintenance to be easy, transport installation is assured. In terms of dynamic demonstration, mini-dynamic modules can be embedded in the sands, depending on the needs of the client; simulation of up and down of engine pistons, curve rotations, turbostats, etc., with light-lighted work runs, visualization of the four-step workstream of diesel engines, adaptation to core scenarios such as scientific exercises, product presentations, etc.; static money can focus on engine structure details and assembly of components, adaptation to teaching, basic displays, etc., and flexibility to meet different needs.
For later adjustment and transport installation, we have introduced modular detachment design whereby the core parts and assembly modules of the engine can be removed, replaced, added, without the need for extensive detachment of the model body。Whether it adjusts the details of the components, supplements the technical parameters, or adds core components, or replaces the damaged components, it is only necessary to operate on the corresponding modules, with a simple, short-cycle process at a much lower cost than the re-orientation。When transported, model components will be protected against collisions, tides and wear and tear, using custom buffer packages and specialized logistics personnel to follow up;At the time of installation, with a specialized technical team at the door, fast-track calibration, fixed calibration without additional input from clients。At the same time, we provide one-two-year free quality assurance, free maintenance, replacement of damaged components during quality assurance, and lifelong technical support to ensure long-term demonstration and use of models and to achieve “one-time customization, flexible adaptation, long-term reuse”。

III. Benefits and applications of large diesel engine modelling

The choice of our manufacturers to produce large-scale diesel engine models will enable them to take full advantage of the model ' s visualization and visualization advantages, the helper clients ' core features and technical advantages, as well as multiple additional values, multi-field scenarios, precise solutions to core needs such as customer displays, teaching, research, recruitment, etc., and help clients to improve competitiveness, reduce overall costs and enable high-quality industry development.
### (一)制作大型柴油发动机模型的核心好处
First, it is structurally pictified to help deliver value efficiently. The large diesel engines are large and complex in structure, with abstract drawings, parameters that make it difficult to visualize the layout and working principles of the components. Models micro-comparable them, clearly show the core components, assembly relationships and workflows, allow viewers to quickly understand the technical advantages and structural characteristics of the engines, and significantly increase the efficiency of product presentation, technical literacy and commercial promotion.
Second, it is tailored to demonstrate core strengths. Customizing the engine model, displaying the scene, positioning the demand and budget scope of the client, allowing flexibility in adjusting model ratios, detail accuracy, dynamic functions, incorporating the exclusive elements of the enterprise, such as LOGO, engine parameters, component identification, both to highlight the technological and product advantages of the client in engine production, application areas and to match the use needs of different scenarios and enhance differential advantages.
Thirdly, it is efficient and cost-effective. We provide integrated customized services, from demand communication, graphic matching, commissioning to post-sales maintenance, and free-of-charge modifications to the programme; modularized design allows for late maintenance, re-engineering, re-use and avoids re-orientation by clients because of engine model upgrades and landscape adaptations, while replacing large engines with field viewing, reducing the combined costs and safety risks of teaching, training, displaying and balancing economy, effort and cost savings.
### (二)大型柴油发动机模型的核心应用场景
1. Showcasing and business opportunities for enterprises: applications for engine producers, engineering mechanics, ships, industry fairs, for core product displays, customer receptions, business offers, visual presentation of engine structures, technological advantages and applications, demonstration of product strengths and cooperation opportunities to clients and investors, help attract cooperation, promote trade and demonstrate the professional image of the enterprise.
2. Teaching and learning scenes: applied to vocational colleges, technical training institutions (mechanicals, ships, power engineering, etc.), as practical teaching aids for teaching, precision reduction of core parts of engines, assembly relationships and working principles, allowing students to familiarize themselves quickly with engine structures, work mechanics and assembly norms through observation, physical exercise, substitution of the limitations of the field dismantling of large engines, reduction of teaching costs and safety risks, and improvement of teaching effectiveness.
3. Scientific research and evolution scenarios: applied to scientific institutions, engine development enterprises, for engine structure optimization, component performance development, technical improvement tests, visualization of the feasibility of different improvement options, mapping of structural bottlenecks, optimization of component design, reduction of scientific error costs, enabling technological upgrading and product overlay.
4. Science and training scenes: applied to general science facilities, enterprise in-house training, industry exchanges, for diesel engine knowledge, staff skills training, visual display of engine work, core component functions, public awareness of power mechanics, upgrading of professional skills, technical dissemination and talent development in dynamic industries.
