Project background

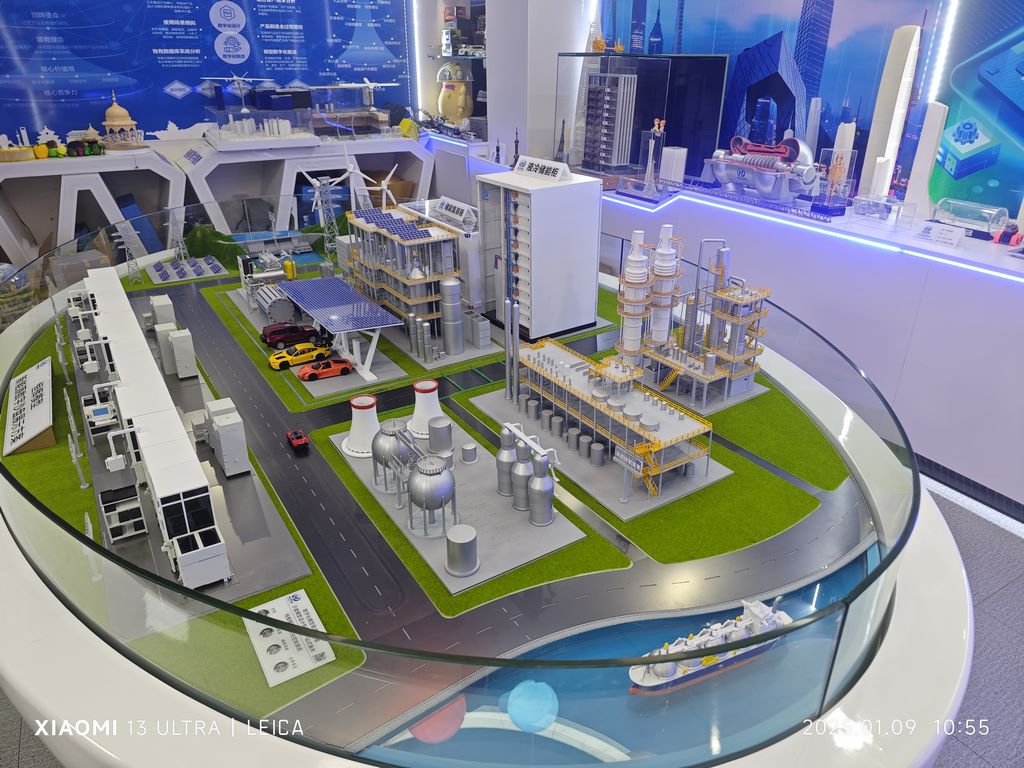

This case is a demonstration project for an energy group that combines the three main plates of the wind farm, the optical matrix and the petrochemical plant area at a scale of 1.50, requiring both dynamic demonstration of the equipment and the authenticity of the scene.
Core process
1. Complex structural construction
Wind-wielding blades: thermal form of waste X-rays, covering the clothes of a dumb car
Photovoltaic panels: laser sculpture tracks for screen protection screens, reverse sugar paper on the back
Chemical plant pipelines: medical fluid pipeline thermal smelting, interlocking fishing line imitation
Dynamic system integration
Wind engine rotation: conversion of computer fan power at 2rpm
Oil pump simulation: syringe pistons connect to mini motors to create pulse effects
Lighting system: Dismantling Christmas lanterns and using thermal indentation controls as a dizziness shield
Material innovation
Oil tank rust: red tea stains permeating paper towel layer Paste
The cooling tower vapour: the moistifier fogging device is hidden in the Akili column Internal
Plant ground: mixture of plaster powder and powder powder after sandpaper grinding
Surface treatment
1. Industrial Quality Enhancement
Device base: Simulation of concrete weathering with fingernail oil cracks
Oil pipeline: Transparent fingernails for silver marks dry sweep Oil
Photovoltaic arrays: alternately pasting grinding sand in different directions from photo masks simulation
2. Environmental integration
Oil pollution permeation: thin brown paint with pine oil
Vegetation transition: moss powder mixed with white emulsions planted in structural cracks
Water Body Effects: Excreted Blue-Ray CD-ROMs cut and covered with UV glue
Standards of goods control
All dynamic parts running for 72 hours without Carden
Colour Revert Using NCS Industrial Colour Card Match
Microsecurity markers use laser engraving migration techniques
