Industrial park composite energy facility modelling programme

I. Project overview

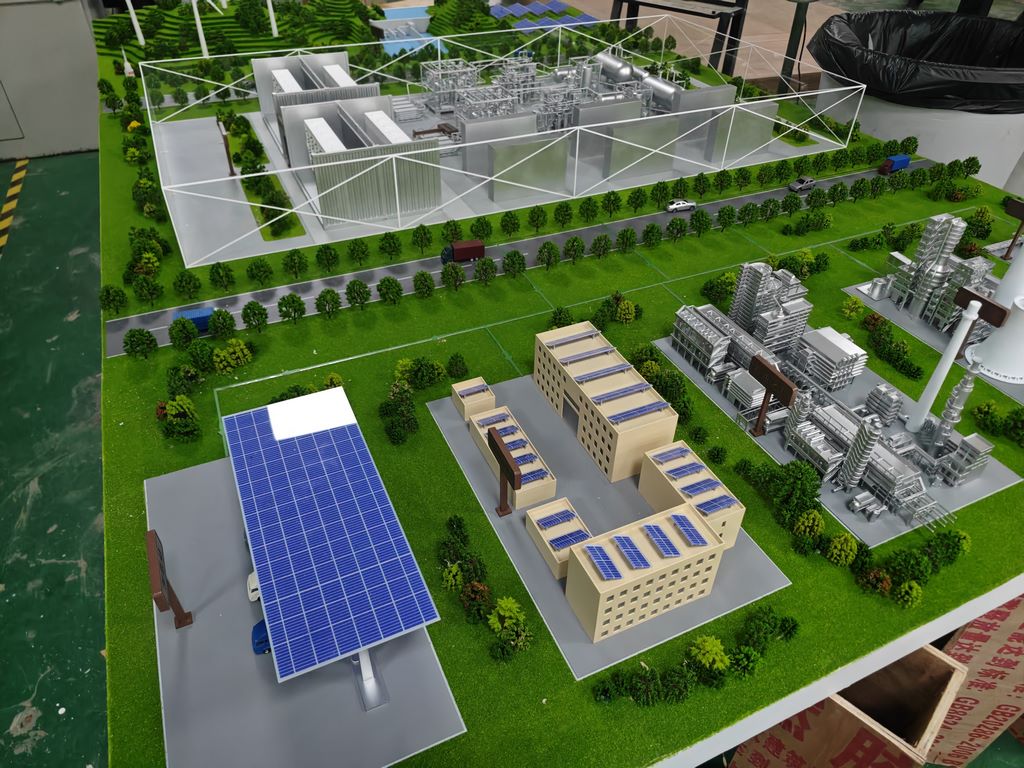

The project is a 1:200 scale dynamic demonstration model and consists of three core modules: photovoltaic arrays, wind clusters and smart distribution centres. The whole size of the model, 2.4 m x 1.8 m, is designed in a layered structure that presents the full process of energy production, transmission and storage.

II. MAIN STRUCTURE PRODUCTION

1. Building framework

• The main plant uses 3mm mackerel laser engraving, which is welded through chloroform solvents.

• Steel structures are co-mingled with brass etchings and stress enhancement at key nodes

• The solar panel array uses transparent PET film to print circuit lines

2. Energy equipment

• Wind generators: resin-supplied blades with stainless steel main axis, with inner microaxis

• Power-transformation facility: ABS aluminum transformer casings with copper wire loops

• Pipeline system: medical silica ducts entangled in metal wiring

III. Special processes

1. Surface muscle

• Concrete walls: plaster base + white emulsive mixed stone sand scraping

• Corrosive effects of metals: nitrate solution for oxidation

• Photovoltaic reflection: Vacuum plating aluminium + polish protection paint

2. Dynamic systems

• Mini-Maddar windmill rotation

• LED Simulate Current Transmission Path

• Magnetic inhalable replacement energy module

IV. Colour management systems

1. Industrial standard colour

• Plant owner: RAL 7035 Industrial ash for old spray

• Safety mark: fluorescent orange double group paint

• Pipelines colour mark: epoxy epoxy cyclopent

2. Special effects

• The light volts Gradient Blue uses multiple layers of transparent coating Add

• Rusty spot iron powder + double oxygen water reaction

• It's oil-filled on the ground.
