Product Details


Case of modelling of the energy system ' s sandbar


1c70957eba7f7905ddd313f93deb2b7 - 1K JPEG.jpg

Project background

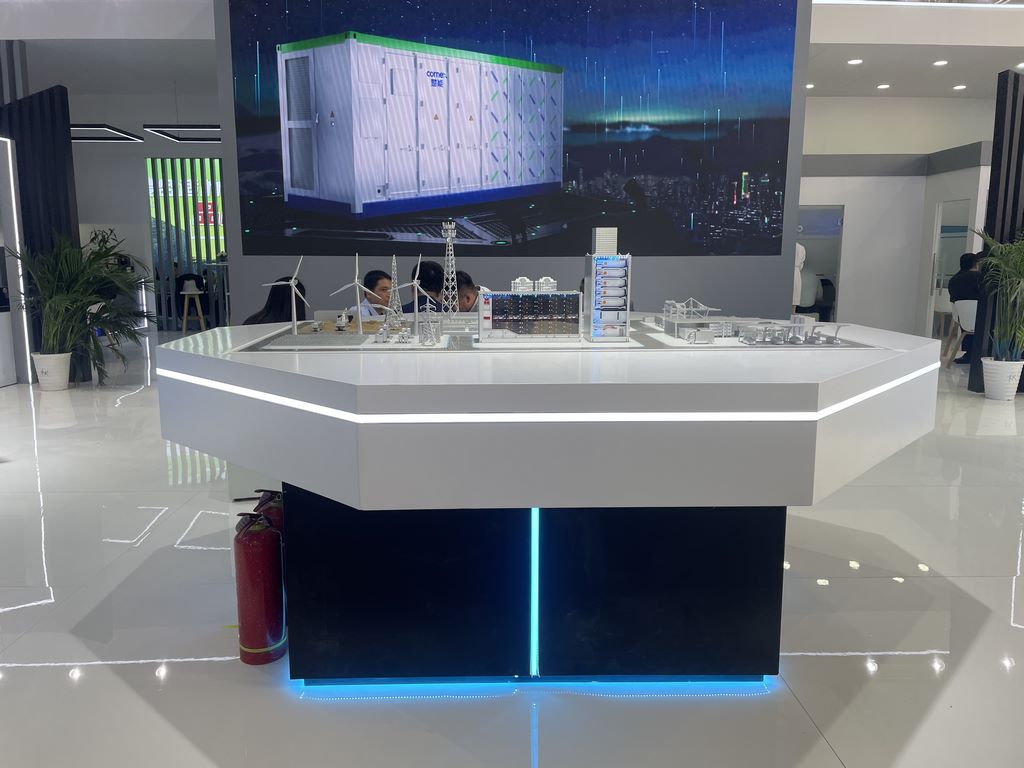

A 1:200-scale wind-light-storage integrated energy sandpad, consisting of three sets of wind-power generators, transformer facilities and storage systems, will be customized for the new energy technology exhibition.

Core production process

Precision modelling phase

  • Field mapping of windmill blade arc

  • Revert real terrain through satellite maps.

  • Characteristic magnification of transformer radiators

Photo-sensitive resin printing

  • The main structure uses semi-transparent resin expression equipment Sensor.

  • Layer-printing windmill blades, single thickness 0.15 mm

  • The energy chamber has an internal LED route.

Composite material processing

  • ABS support enhances structural stability

  • Transparent Aklik Simulator Insulation

  • Magnetic base for transport assembly

Industrial Colouring Process

  • Wind towers are treated with metal base paint + light

  • The oxidation of the electrical towers is layered.

  • The storage tank for the sand UV coating.

Dynamic presentation programme

  • Programable LED simulation energy flow path

  • Magnetic trigger wind-rotation demonstration

  • Customize the sandpad background projection system

  • Modular design support component replacement

Quality control

  • Each set of models is matched to a chart

  • 3 different light environment tests

  • Specialized box seismic protection
