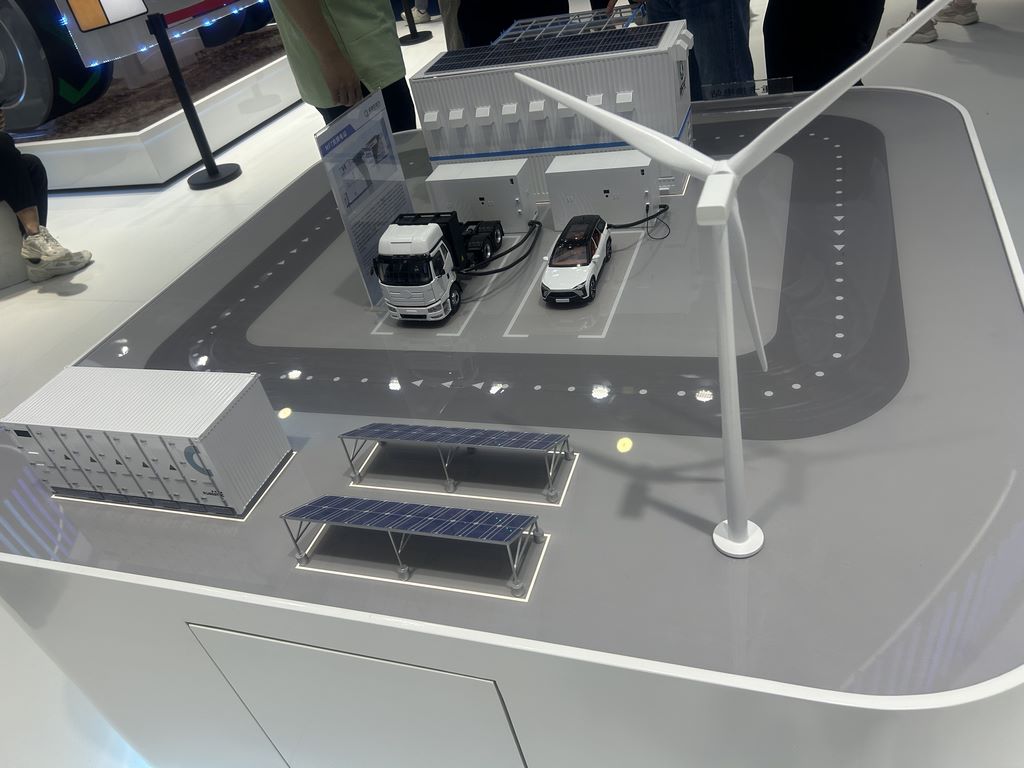

Case of the development of an intelligent charging station scenario model

Project backgroundThe production of a prototype of a flagship charging station for a new energy vehicle brand requires the complete display of core functional areas such as recharge stakes, photovoltaic roofs, rest areas, with overall reduction of over 90 per cent and light interaction.

Smart Charge Station 4 - 1K JPEG.jpg

Main Structure ProductionThe capping of the charging station is based on the Aclytic thermal bending process, which displays a translucent photovoltaic effect through multilayering. The poles are supported by metal piping carts, and surfaces are laced to reduce steel structure. The main charger is shaped through precision injections, and separate improbable parts of the gun interface are plugged to ensure smooth activity.

Characteristic Details Processing

  1. Charged gun wires use soft glue injection to maintain natural downfall

  2. The display screen is printed with high-photo-photo film UV to display charge-state animation

  3. Ground space markers are made by laser engraving dent filling process

  4. Tables and chairs in the rest area are micro-processed with wood and surfaces are used for old treatment

Material Applications Programme

  • Architect: Anti-conversion composite sheet

  • Transparent component: scratch-proof polycarbonate

  • Metal component: Antioxidation alloy plating

  • Landscape vegetation: environmentally friendly fibre material

Surface process

  1. Basic treatment:

    • EMPLOYMENT OF EMPLOYED IN COMPLETE FOR COMPLETE

    • Use of special patches at seams

    • Hand-crafted and fine-drived.

  2. Professional coating:

    • Underground paints use retro-enhanced paints

    • The main color uses a micrometer-grade sprayer.

    • Identifier text is trans-printed using trans-printing techniques

  3. Effect enhancement:

    • ELECTRONIC ELECTRONIC PLACE OF MEDIUM PARTS

    • Photovoltaic surface plating gradient membrane

    • The ground's going to wear it down.

Dynamic system integration

  • The charge-state indicator light changes with the program

  • The penthouse has a colourable atmosphere light.

  • Interactive screen displays simulated charge data

  • With wireless charge demonstration module
